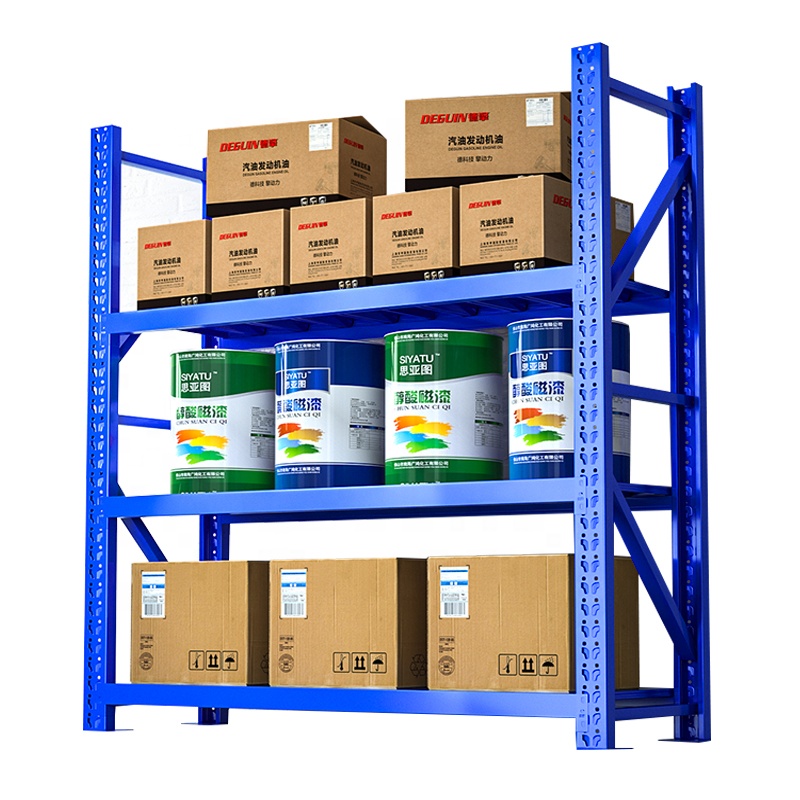

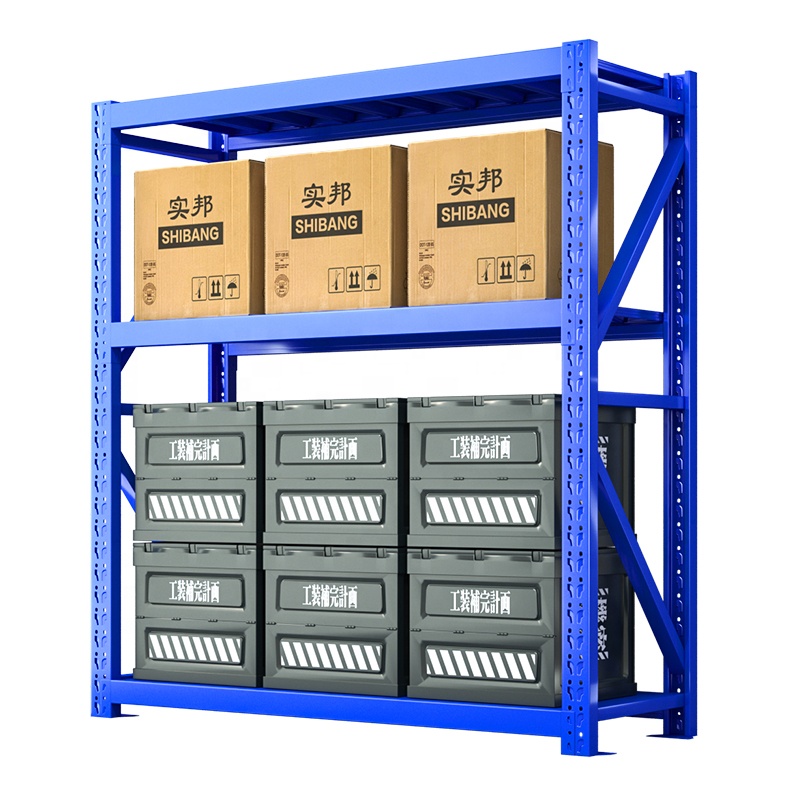

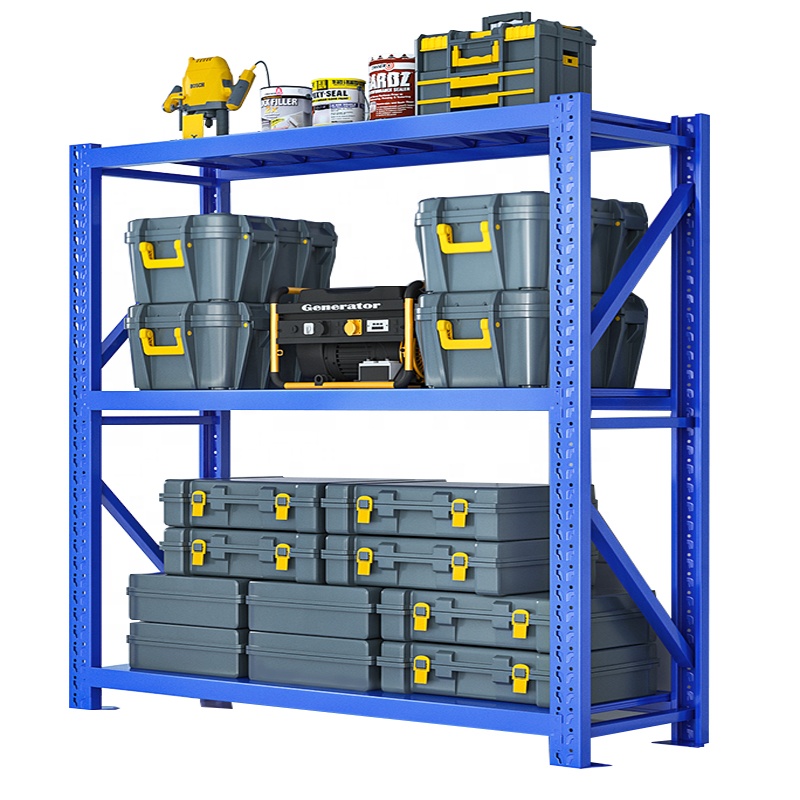

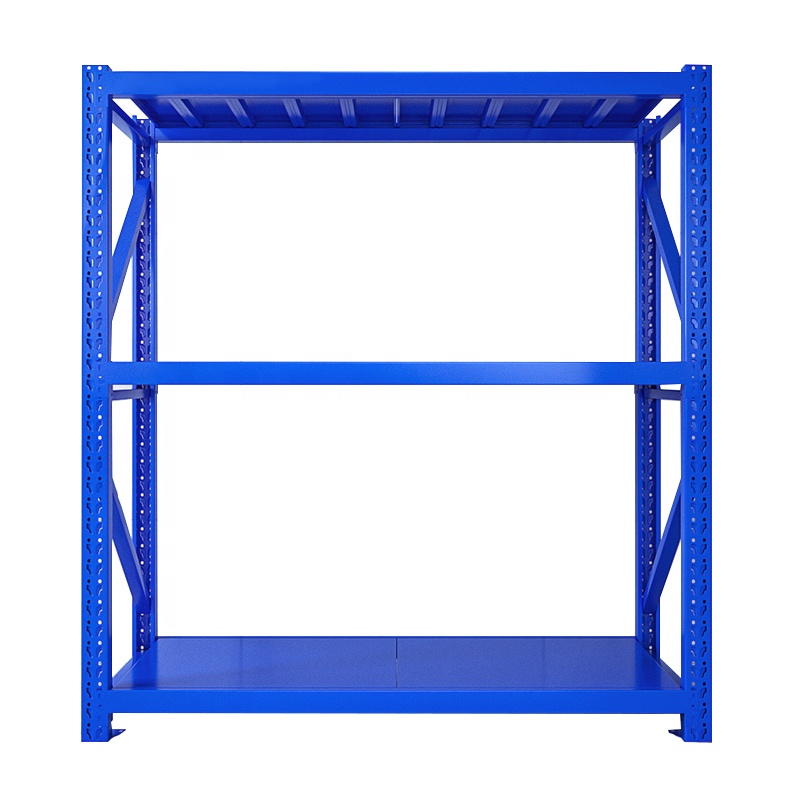

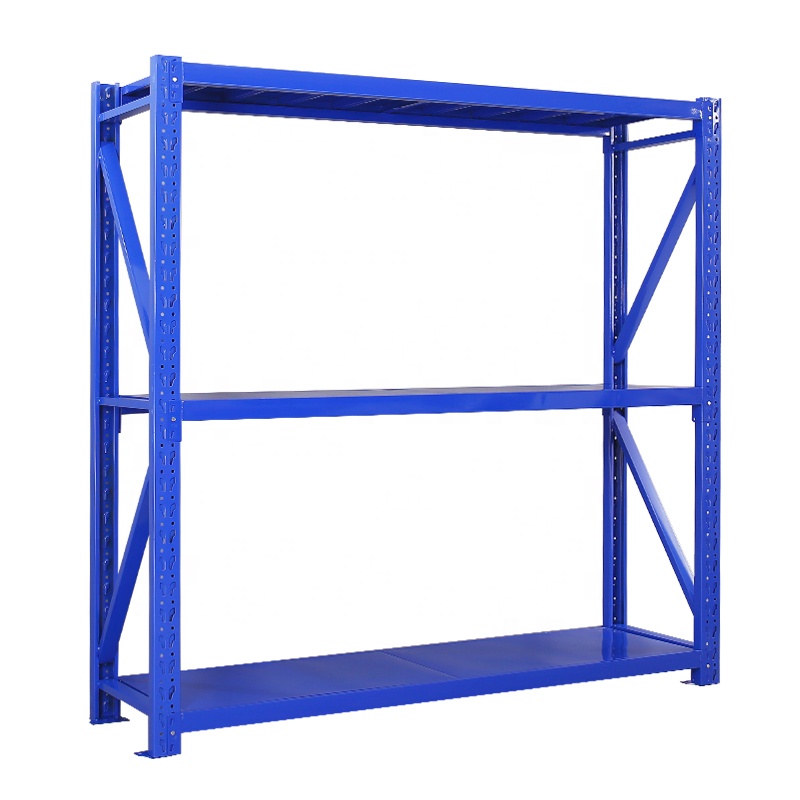

Shibang Rack
1 / 5
| The New Light Duty Racking | ||||
| Loading Capacity (kg) | Shelf Thickness | Upright Thickness | Beam Thickness | |
|---|---|---|---|---|
| 120kg/layer | 0.32mm thick cold rolled steel sheet | 30*50*0.7mm C steel | 30*50*0.6mm P steel | |
| The New Medium Duty Racking | ||||
| Loading Capacity (kg) | Shelf Thickness | Upright Thickness | Beam Thickness | |
| 120kg/layer | 0.32mm thick cold rolled steel sheet | 30*50*0.7mm C steel | 30*50*0.6mm P steel | |
| Size (cm) | Body-frame Weight (kg) | Sub-frame Weight (kg) | Loading Capacity (kg) | |
|---|---|---|---|---|
| Thicken 200*60*200=4 layers | 44±0.5 | 40±0.5 | 180kg/layer | |
| Thicken 200*50*200=4 layers | 41±0.5 | 37±0.5 | 180kg/layer | |
| Thicken 200*40*200=4 layers | 39±0.5 | 35±0.5 | 180kg/layer | |
| Thicken 180*60*200=4 layers | 41±0.5 | 37±0.5 | 180kg/layer | |
| Thicken 150*60*200=4 layers | 37±0.5 | 32±0.5 | 180kg/layer | |
| Thicken 150*50*200=4 layers | 33±0.5 | 28±0.5 | 180kg/layer | |
| Thicken 150*40*200=4 layers | 30±0.5 | 26±0.5 | 180kg/layer | |
| Thicken 120*60*200=4 layers | 30±0.5 | 26±0.5 | 180kg/layer | |
| Thicken 120*50*200=4 layers | 27±0.5 | 23±0.5 | 180kg/layer | |
| Thicken 120*40*200=4 layers | 25±0.5 | 21±0.5 | 180kg/layer | |
| Thicken 100*50*200=4 layers | 25±0.5 | 21±0.5 | 180kg/layer | |
| Thicken 100*40*200=4 layers | 23±0.5 | 19±0.5 | 180kg/layer | |
| The New 200*50*200=4 layers | 33±0.5 | 29±0.5 | 120kg/layer | |
| The New 150*50*200=4 layers | 27±0.5 | 23±0.5 | 120kg/layer | |
| The New 150*40*200=4 layers | 25±0.5 | 21±0.5 | 120kg/layer | |
| The New 120*50*200=4 layers | 24±0.5 | 20±0.5 | 120kg/layer | |
| The New 120*40*200=4 layers | 21±0.5 | 18±0.5 | 120kg/layer | |
| The New Medium 200*60*200=4 layers | 49±0.5 | 42±0.5 | 240kg/layer | |
| The New Medium 200*50*200=4 layers | 44±0.5 | 38±0.5 | 240kg/layer | |
| The New Medium 150*60*200=4 layers | 41±0.5 | 34±0.5 | 240kg/layer | |
| The New Medium 150*50*200=4 layers | 37±0.5 | 30±0.5 | 240kg/layer | |
| Parameter Item | Value / Specification |
|---|---|
| Material | Steel |
| Feature | Corrosion Protection |
| Type | Warehouse Rack, Boltless / Rivet Shelving |
| Length of layers | 200cm |
| Layer | 1 Layer, 2 Layer, 3 Layer, 4 Layer, 5 Layer, 8 Layers |
| Surface Treatment | Powder Coated |
| Special Feature | Adjustable |
| Installation | Industrial Shelving |
| Use | Industrial |
| Usage | Garage / Warehouse |
| Product name | Warehouse Shelf Storage Shelf |
| Packing | Customers' Request |
| Structure | Adjustable |
| Certification | CE / ISO9001 |
| Advantages | Over 10 Years Experience |
