Shibang Rack
1 / 5
| Size (cm) | Number of Layers | Loading Capacity | Color | Materials Specifications |
|---|---|---|---|---|
|
L100*D40*H200 L100*D50*H200 L120*D40*H200 L120*D50*H200 L150*D40*H200 L150*D50*H200 L180*D40*H200 L180*D50*H200 |

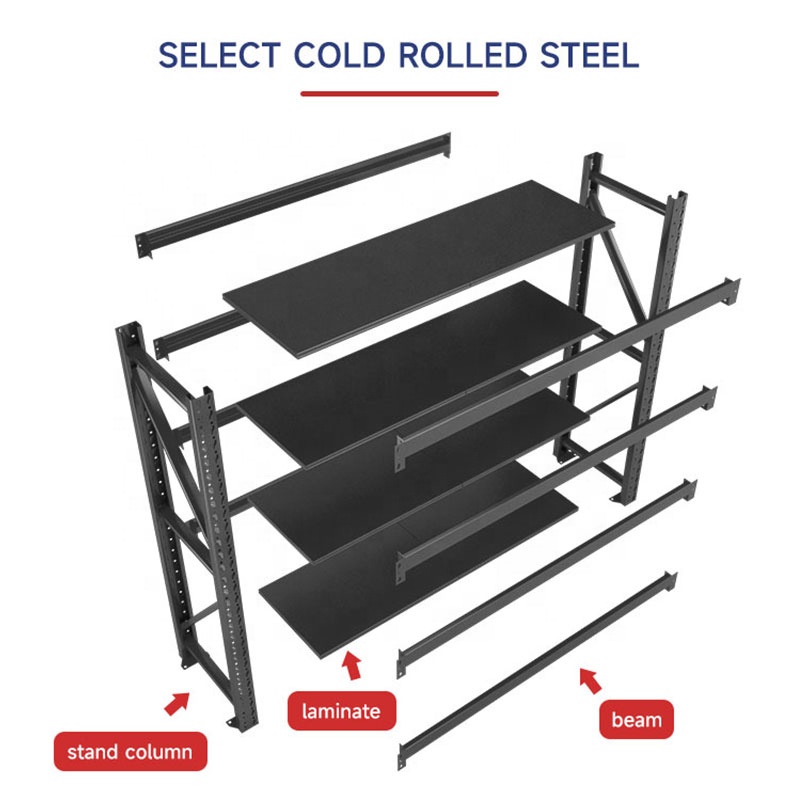

3 layer / 4 layer / 5 layer / custom | 120Kg / layer | Blue, white, grey, frosted black, custom | Column: 30*50*0.5 C steel Beam: 30*50*0.45 P steel Laminate: 0.3 (0.23 bar) |
|
L100*D40*H200 L100*D50*H200 L120*D40*H200 L120*D50*H200 L120*D60*H200 L150*D40*H200 L150*D50*H200 L150*D60*H200 L180*D60*H200 L200*D40*H200 L200*D50*H200 L200*D60*H200 |
3 layer / 4 layer / 5 layer / custom | 180Kg / layer | Blue, white, grey, frosted black, custom | Column: 30*50*0.7 C steel Beam: 30*50*0.6 P steel Laminate: 0.4 (0.3 bar) |
| Racking Type | loading capacity (kg) | Shelf thickness | Upright thickness | Beam thickness |
|---|---|---|---|---|
| The New Light Duty Racking | 120kg/layer | 0.32mm thick cold rolled steel sheet | 30*50*0.7mm C steel | 30*50*0.6mm P steel |
| The New Medium Duty Racking | 120kg/layer | 0.32mm thick cold rolled steel sheet | 30*50*0.7mm C steel | 30*50*0.6mm P steel |
| Size (cm) | Body-frame weight (kg) | Sub-frame weight (kg) | loading capacity(kg) |
|---|---|---|---|

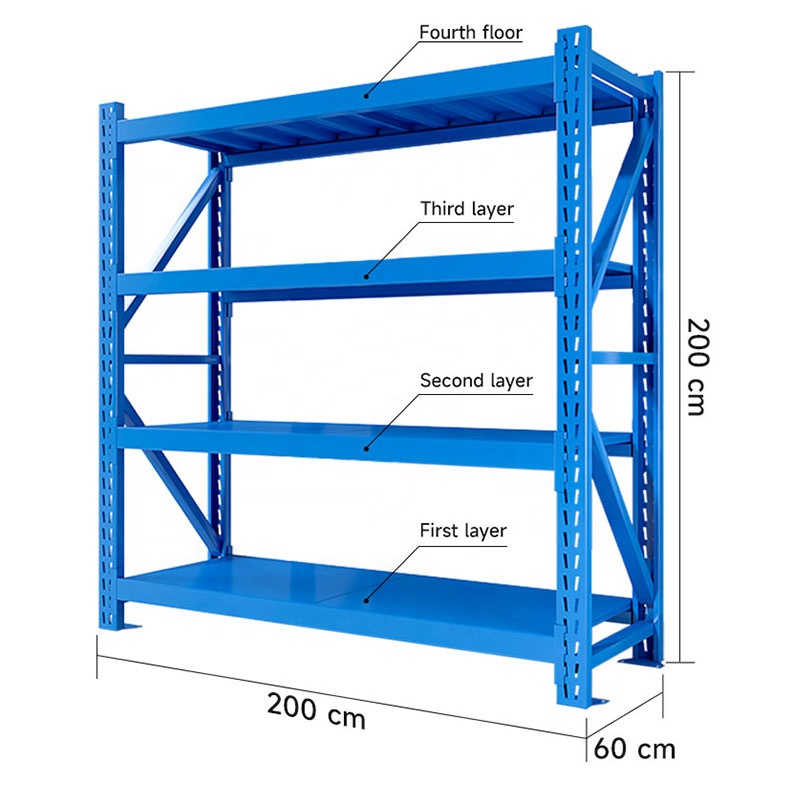

| Thicken 200*60*200=4 layers | 44±0.5 | 40±0.5 | 180kg/layer |
| Thicken 200*50*200=4 layers | 41±0.5 | 37±0.5 | 180kg/layer |
| Thicken 200*40*200=4 layers | 39±0.5 | 35±0.5 | 180kg/layer |
| Thicken 180*60*200=4 layers | 41±0.5 | 37±0.5 | 180kg/layer |
| Thicken 150*60*200=4 layers | 37±0.5 | 32±0.5 | 180kg/layer |
| Thicken 150*50*200=4 layers | 33±0.5 | 28±0.5 | 180kg/layer |
| Thicken 150*40*200=4 layers | 30±0.5 | 26±0.5 | 180kg/layer |
| Thicken 120*60*200=4 layers | 30±0.5 | 26±0.5 | 180kg/layer |
| Thicken 120*50*200=4 layers | 27±0.5 | 23±0.5 | 180kg/layer |
| Thicken 120*40*200=4 layers | 25±0.5 | 21±0.5 | 180kg/layer |
| Thicken 100*50*200=4 layers | 25±0.5 | 21±0.5 | 180kg/layer |
| Thicken 100*40*200=4 layers | 23±0.5 | 19±0.5 | 180kg/layer |
| The New 200*50*200=4 layers | 33±0.5 | 29±0.5 | 120kg/layer |
| The New 150*50*200=4 layers | 27±0.5 | 23±0.5 | 120kg/layer |
| The New 150*40*200=4 layers | 25±0.5 | 21±0.5 | 120kg/layer |
| The New 120*50*200=4 layers | 24±0.5 | 20±0.5 | 120kg/layer |
| The New 120*40*200=4 layers | 21±0.5 | 18±0.5 | 120kg/layer |
| The New Medium 200*60*200=4 layers | 49±0.5 | 42±0.5 | 240kg/layer |
| The New Medium 200*50*200=4 layers | 44±0.5 | 38±0.5 | 240kg/layer |
| The New Medium 150*60*200=4 layers | 41±0.5 | 34±0.5 | 240kg/layer |
| The New Medium 150*50*200=4 layers | 37±0.5 | 30±0.5 | 240kg/layer |
